RFI Console
Complete technical reference for the RFI Management System
Overview
The RFI Console is a comprehensive management system designed to streamline the Request for Information (RFI) process across construction and engineering projects. It provides real-time visibility, performance analytics, and workflow automation for RFI tracking and resolution.System Capabilities
- Centralized RFI tracking and management
- Real-time KPI dashboards and analytics
- Automated email notifications and reminders
- Document attachment management
- Multi-user role-based access control
System Architecture
Three-tier architecture with clear separation of concerns:Presentation Layer
React-based dashboard with real-time updates and interactive componentsApplication Layer
Node.js/Express API handling business logic, validation, and workflow orchestrationData Layer
PostgreSQL database with Redis caching for performance optimization┌─────────────────────────────────────────────────────┐
│ PRESENTATION LAYER │
│ (React Dashboard Components) │
├─────────────────────────────────────────────────────┤
│ APPLICATION LAYER │
│ (Node.js API • Email Service • File Handler) │
├─────────────────────────────────────────────────────┤
│ DATA LAYER │
│ (PostgreSQL • Redis • Document Storage) │
└─────────────────────────────────────────────────────┘RFI Creation Flow
┌──────────┐ ┌─────────────┐ ┌─────────────┐
│ User │────▶│ RFI Form │────▶│ Validation │
│ Input │ │ Submission │ │ Engine │
└──────────┘ └─────────────┘ └──────┬──────┘
│
┌──────▼──────┐
│ Database │
│ Write │
└──────┬──────┘
│
┌──────▼──────┐
┌──────│ Email │
│ │ Notify │
│ └─────────────┘
┌────▼─────┐
│ Document │
│ Upload │
└──────────┘Service Functions Reference
console_metrics()
Purpose: Aggregates KPIs for dashboard display
Returns: JSON object with response time metrics, open/closed counts, leaderboard data
{
"total_rfis": 142,
"open_rfis": 23,
"avg_response_time": "2.4 days",
"on_track": 89,
"overdue": 12,
"leaderboard": [
{"name": "J. Smith", "closed": 42},
{"name": "A. Johnson", "closed": 38}
]
}console_table()
Purpose: Returns paginated RFI listing with sorting and filtering
Parameters: page, limit, sortBy, filters, searchQuery
async function console_table(params) {
const query = applyFilters(baseQuery, params.filters);
const sorted = applySorting(query, params.sortBy);
const paginated = await applyPagination(sorted, params.page, params.limit);
return {
data: paginated.results,
total: paginated.total,
page: params.page
};
}save()

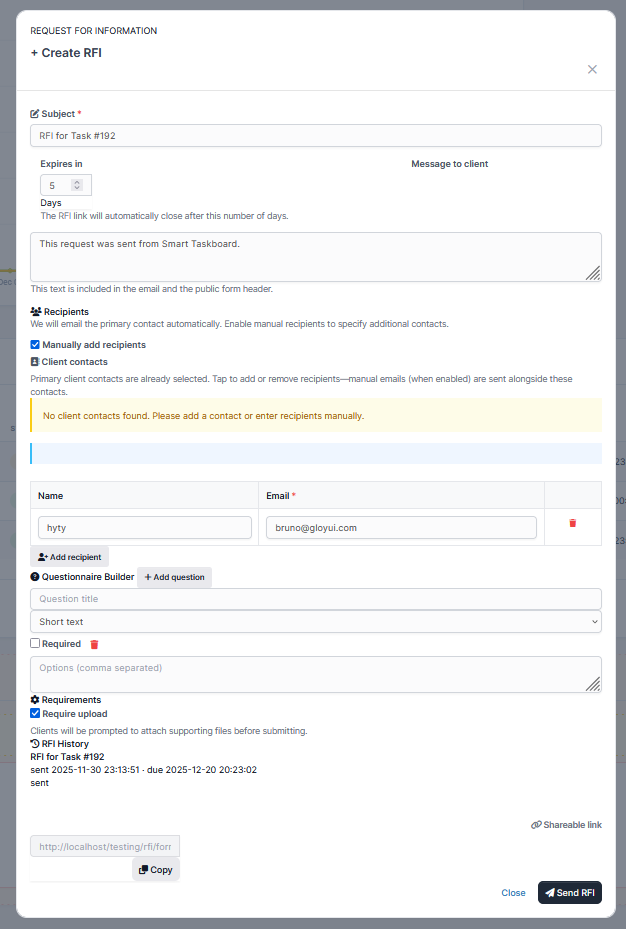

Purpose: RFI creation with validation and error handling
Features: Atomic transactions, duplicate prevention, attachment linking

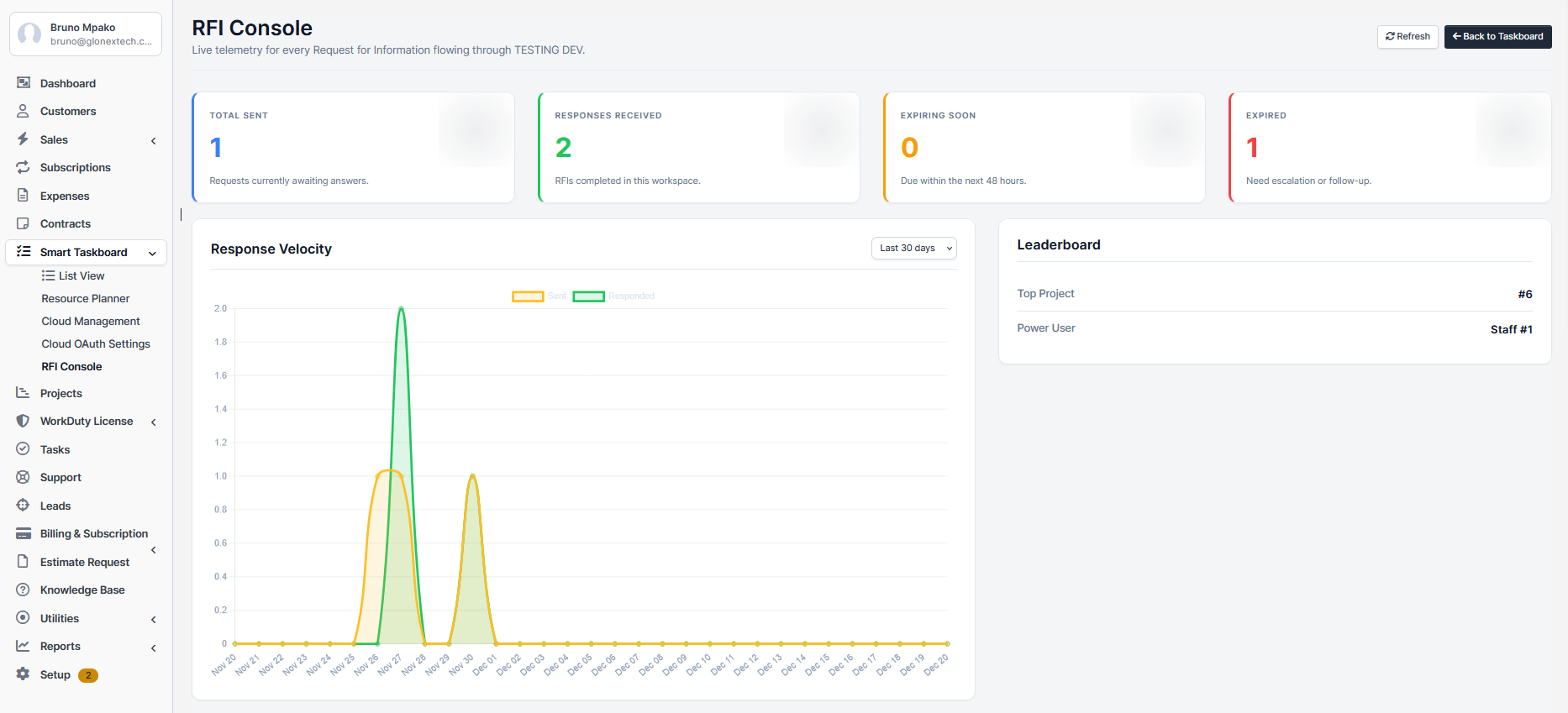

RFI Console Dashboard Flow
1
Dashboard Initialization
System loads user preferences, permissions, and default filters
2
KPI Cards Rendering
Open RFIs: 23 | Avg Response: 2.4d | Overdue: 12
Benefits Synopsis
- Complete Visibility: Real-time dashboard with all RFI statuses
- Performance Analytics: Track response times and team performance
- Proactive Management: Identify bottlenecks before they cause delays
- Delivery Health Monitoring: Track on-time vs overdue metrics
- Advanced Filtering: Multi-criteria filtering for targeted analysis

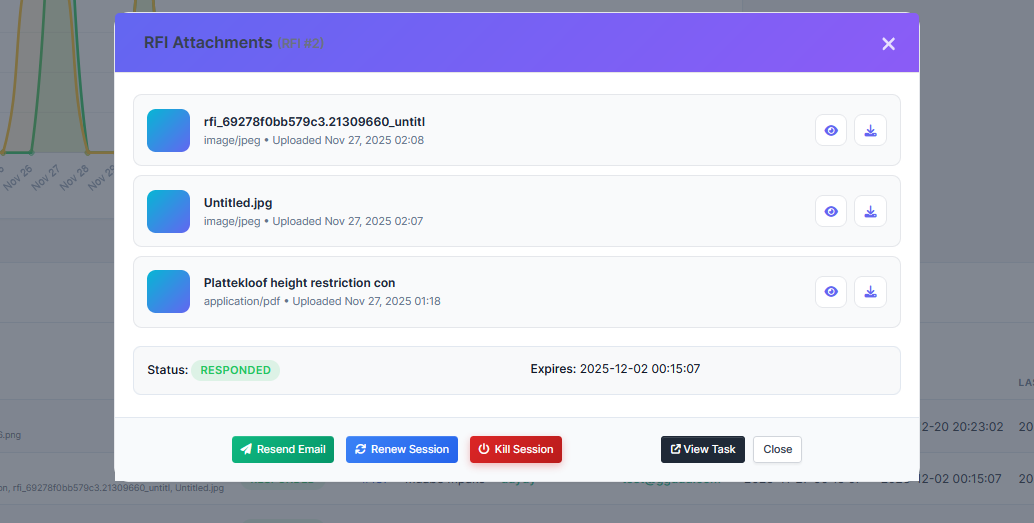

- Centralized Document Management: All attachments in one searchable location
- Bulk Operations: Process multiple RFIs simultaneously
- Permission-based Access: Role-specific views and actions
- Real-time Updates: Live refresh without page reloads
- Taskboard Integration: Connect RFIs to broader project management
Console Dashboard Data Flow
┌─────────────┐ ┌─────────────┐ ┌─────────────┐
│ Browser │ │ API │ │ Database │
│ Client │ │ Gateway │ │ │
└──────┬──────┘ └──────┬──────┘ └──────┬──────┘
│ │ │
│─1. Load Dashboard│ │
│─────────────────▶│ │
│ │ │
│ │─2. Fetch KPIs │
│ │─────────────────▶│
│ │ │
│ │◀─3. Return Metrics│
│ │ │
│◀─4. Render Dashboard │
│ │ │
│─5. Filter Change │ │
│─────────────────▶│ │
│ │─6. Query Filtered│
│ │─────────────────▶│
│ │◀─7. Return Data │
│◀─8. Update Table │ │
┌──────┴──────┐ ┌──────┴──────┐ ┌──────┴──────┐
│ Real-time │ │ Cache │ │ Audit │
│ Updates │ │ Layer │ │ Logging │
└─────────────┘ └─────────────┘ └─────────────┘Email Delivery Retry Flow
┌─────────────┐ ┌──────────────┐ ┌─────────────┐
│ User │ │ RFI │ │ Email │
│ Action │ │ Console │ │ Service │
└──────┬──────┘ └──────┬───────┘ └──────┬──────┘
│ │ │
│─Resend Request───▶│ │
│ │ │
│ │─Check Attempt Log─▶│
│ │ │
│ │◀─Return Status─────│
│ │ │
│ │─Send Email────────▶│
│ │ │
│ │◀─Delivery Result───│
│ │ │
│◀─Update UI────────│ │
│ │ │
│ ┌────▼─────┐ │
│ │ Audit │ │
│ │ Log │ │
│ └──────────┘ │
┌──────┴──────┐ ┌─────▼────┐
│ Success │ │ Retry │
│ Notification │ Queue │
└─────────────┘ └──────────┘Key Capabilities - Live Telemetry**: Real-time tracking of every RFI flowing through the system - Performance Metrics**: KPI cards showing sent, received, expiring, and expired RFIs - Response Velocity Analytics**: Visual trend analysis of RFI send and response patterns - Comprehensive Filtering**: Advanced search and filter capabilities for RFI management - Delivery Health Monitoring**: Automatic tracking of email delivery status with retry mechanisms - Document Library**: Centralized attachment management for RFI responses

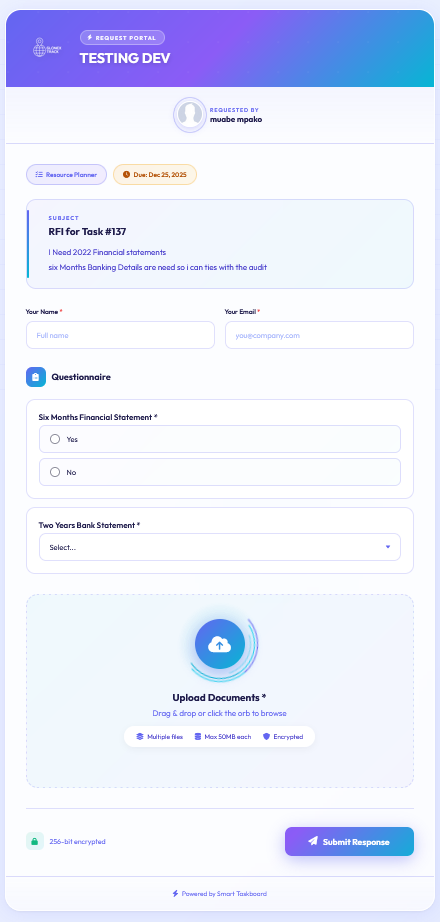

Client facing form
